sc Connector

SC Range

SC stands for Subscriber Connector- a general purpose push/pull style connector developed by NTT. SC has an advantage in keyed duplicability to support send/receive channels. SC stands for Subscriber Connector- a general purpose push/pull style connector developed by NTT. SC has an advantage in keyed duplicability to support send/receive channels.

!
sc-fc adaptor

FC/PC - SC/PC Hi-bird Adaptor

Used For Adapting Field Termination To FC/PC Connection

Specifications:

  • Alignment Sleeve: ZrO2
  • Housing Material: Zn-Alloy or Cu-Ni (metal)
  • Housing Material: Engineering Plastic Blue (plastic)
  • Insertion Loss: 0.30dB max., 0.10dB typ.
  • Durability: 500 matings, 0.2dB max. increase
  • Retention Force: 200~600grams
  • Operating Temperature: -40~+80°C
sc-fc  plastic adaptor

FC/PC - SC/PC Plastic Hi-bird Adaptor

FC style to SC style Use in singlemode applications. Free-hanging or panel-mount design. Dust caps protect against debris and contamination RoHS Compliant

Functions:
A cable to cable fibre optic connection Cable to equipment fibre connection

Larger picture

SC- SC Adaptor Blue Simplex

Used to join two SC connectors. OS1-OS1 Simplex

SC-SC Panel Adaptor PVC Blue Duplex

SC-SC Panel Adaptor PVC Blue Duplex

SC-SC Panel Adaptor no-flange PVC Blue Duplex

SC-SC Panel Adaptor PVC Blue Duplex no-flange, for use in Micos Box ORM 3/4

SC - SC Panel Adaptors APC

SC - SC Panel Adaptors APC Green Simplex Singlemode

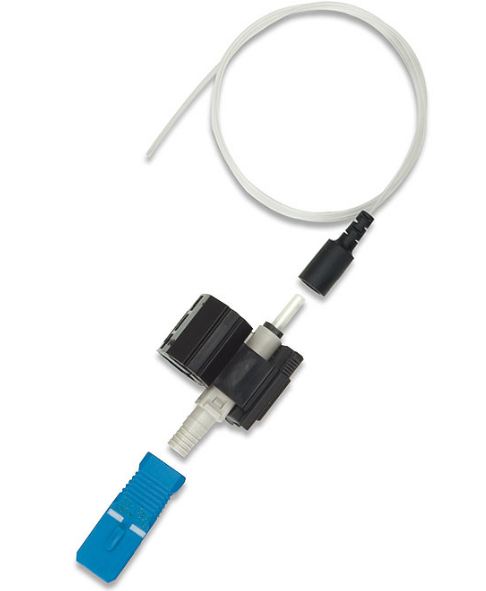

FAST Connectors

Fast Series Connectors

Fujikura FAST Series Connectors FAST: Field Assembly with Simple Technique The FAST Series connectors have a potential fibre connection's time of less than 30 seconds, including preparation. Apart from the standard fibre preparation tools, no other specialised tools are required in conjunction with the PC range of connectors, however APC variants require some additional tooling. The FAST series connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. Features: • Field installable high reliability connector • Connector termination in less than 30 seconds • Requires no polishing • No messy epoxy • Termination to both 0.25mm & 0.9mm Ø fibre • No specialised tooling required • No specialised training required • Low insertion loss & back reflection Data Sheet and Videos: http://www.fujikura.co.uk/fibre_optics/products/fibre_connectors/fast.html  Apart from the standard fibre preparation tools, no other specialised tools are required in conjunction with the PC range of connectors.  We are now using these connectors on our Fibre Training Courses and students are obtaining low losses of  <0.3db per connector

Product Features:

  • Pre-stubbed, factory-polished ferrule
  • No epoxy required
  • Precision mechanical alignment insures low loss
  • Fibre can be re-seated
  • 3.0mm, 2.0mm, and 900um boot provide with each connector
  • VFL can be used to confirm fiber is installed properly
  • Meets TIA/EIA 568A performance requirements
  • Meets TIA/EIA 604 (FOCIS) connector interface requirement

Applications:
